Free online viewing of 1983-2004 Chevrolet S10 Pickup System Wiring Diagrams PDF - full service manual in your browser.. Our comprehensive 1985 Chevrolet S10 Blazer radio wiring diagram shows all the radio wire harness colors, speaker wire colors, and speaker sizes. Use this head unit pinout guide to help with your car stereo installation or to troubleshoot radio wiring issues in your 1985 Chevrolet S10 Blazer.

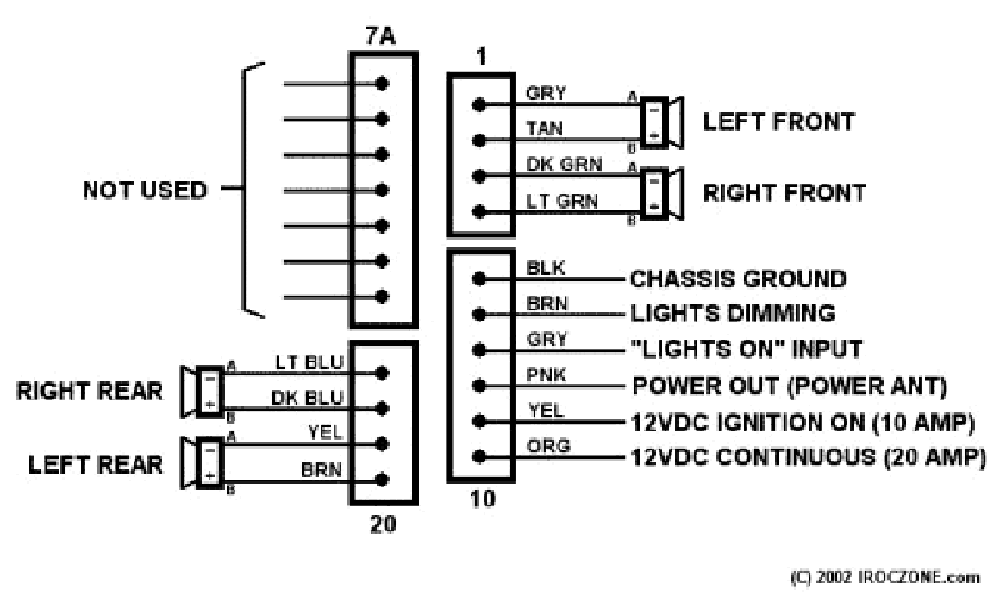

A Stereo Wiring Diagram For 1985 Chevy S10 is a technical schematic illustrating the electrical connections between the vehicle's power source, chassis ground, and audio output components.. 1985 Chevrolet S10 Blazer Speaker Sizes Audio Front Speakers Size: 4″ x 6″ Speakers Audio Rear Speakers Size: 6″ x 9″ Speakers The following information is currently not available: Stereo Amp Trigger Wire *If you know any of the above or any other missing information please use the comment box below to notify us.
