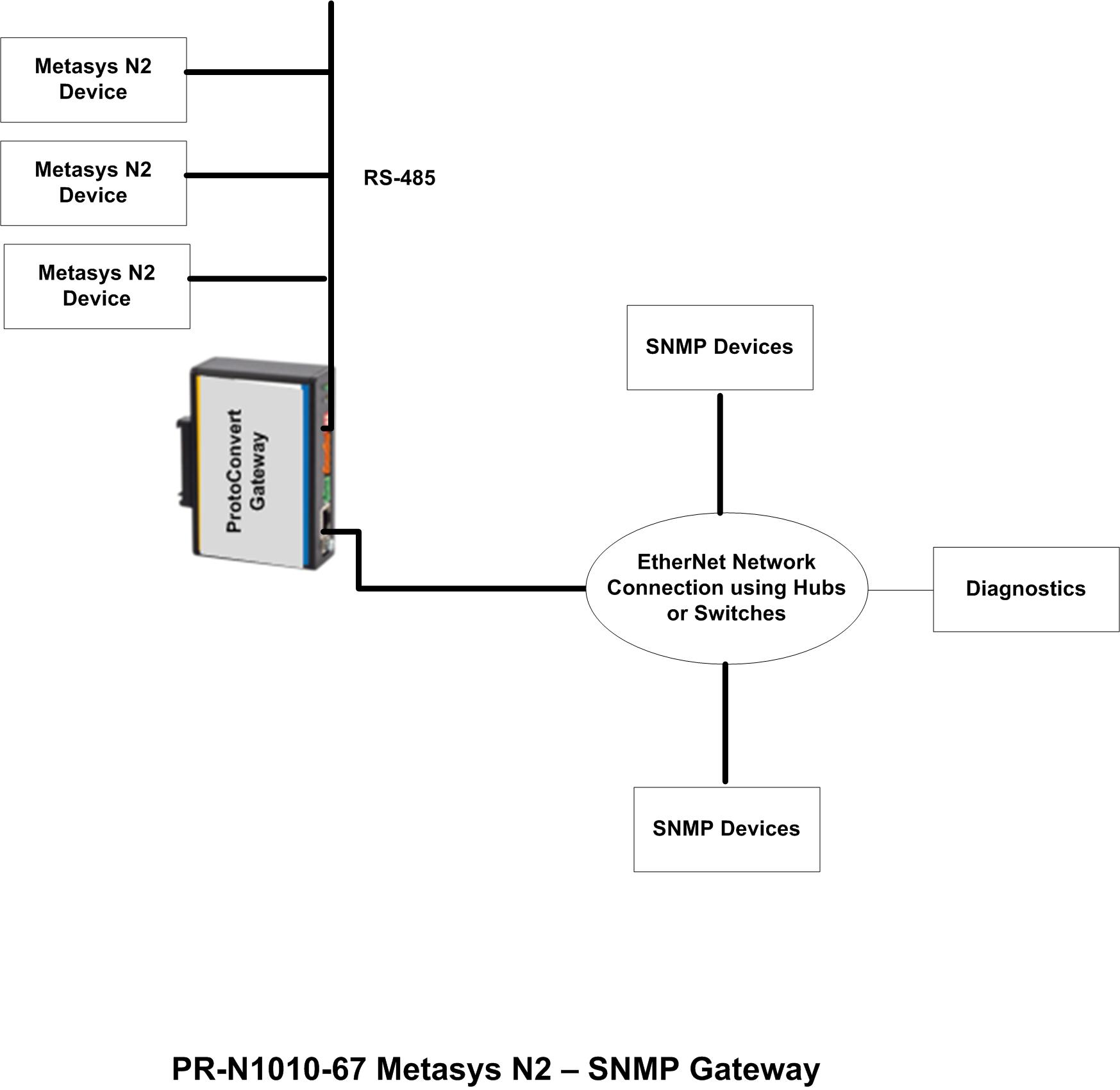

Do not mount the TC-9102 closer than one inch (25 mm) to line voltage or electrically noisy devices. Installation instructions for the TC-9102 Controller and its accessory devices are detailed in this section. The types and numbers of components (sensors and actuators) selected for use with the TC-9102 vary according to application.. Metasys Network Configuration Your facility benefits even more when the TC-9102 Controller is part of larger Metasys Network. The TC-9102 can connect to the Metasys via the N2 Bus to either a Network Control Unit or Companion System.

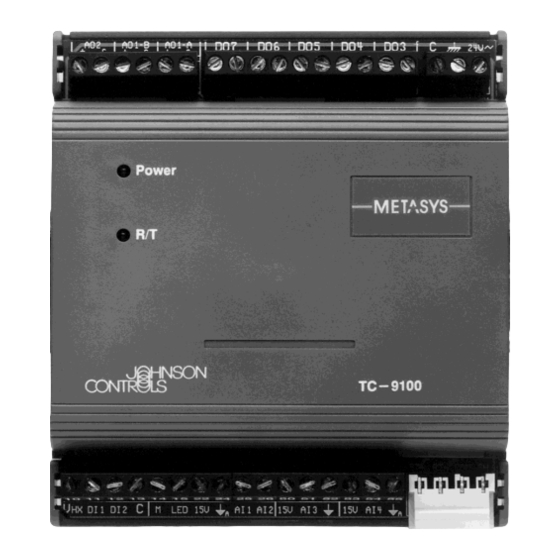

All TC-9102 controllers may be connected to an N2 Bus to provide operating data to a supervisory system and allow modification of operating parameters. You can start up and commission controllers via the N2 Bus or from the Metasys Operator Workstation (Release 7.01) using HVAC PRO (Release 8.04) software, a component of configuration tools.. System 91 Manual TC-9102 Technical Bulletin Issue Date 0698 TC-9102 Fan Coil Unit Controller Introduction Page 3 • Model Types 4 • Controller Functions 5 • Output Types 10 • Fan Output Types 12 Installation 15 • Mounting 15 • Wiring 16 • Jumper and Switch Selections 22 • Startup 23 • Commissioning 23 Specifications & Technical Data 25 • Factory-Set Parameters 26.
