Vertical Boat lift oreaterco *1016218 - Bundle Lift Vertical 2008 DVS* ITEMQTYPART NUMBER DESCRIPTION 21 81016221 Bottom Beam 11 91016219 Lift Side Winch 12 01016220 Lift Side Opposite 12 11016222 Front Rack Assembly 1 1016224 Front Rack - Alum Only 1 1021300 Winch Cable 12 21016223 Rear Rack Assembly 1 1016225 Rear Rack - Alum Only. Boat Hoist Gear Plate Assembly Electric Motor Wiring Diagrams Drum Switch GFCI Boat Hoist USA assumes no responsibility or liability for installations and/or improper use of the equipment. This guide is intended to be used as a reference and a general guideline only. Boat Hoist USA is not responsible for the design, construction or installation.

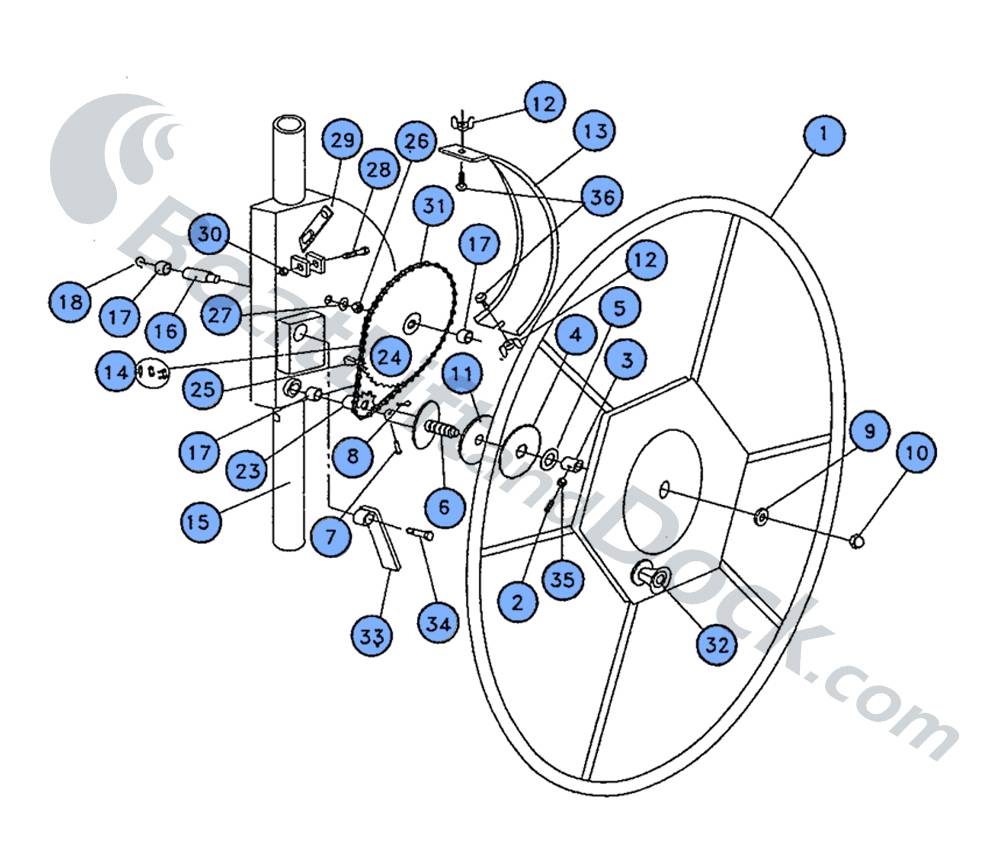

Boat Lift System - Free download as PDF File (.pdf), Text File (.txt) or read online for free. This document provides parts lists and diagrams for ShoreStation aluminum boat hoists. It identifies the individual parts that make up the hoist assembly, including the base pad, lift arm, legs, lower frame, platform, spacer tube, cable connections, winch tube, bunk attachment, bunk assembly, winch.. A boathouse lift uses a hoist, cables, and pulleys to lift a boat. The boat hoist turns a pipe upon which the cable is wound, and the cable extends to the sides of the boathouse, travels down via pulleys, and then attaches to either slings or a cradle. SLINGS AND CRADLES Boathouse lifts use either polyester slings or steel cradles to lift a boat.
