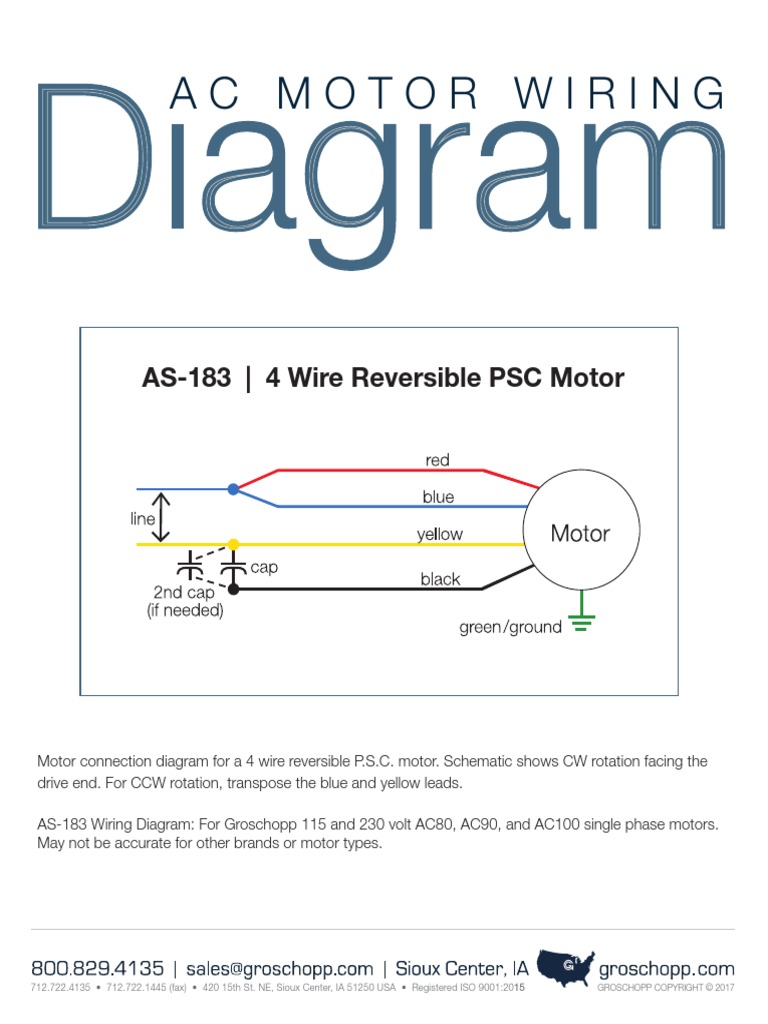

AS-183 | 4 Wire Reversible PSC Motor Motor connection diagram for a 4 wire reversible P.S.C. motor. Schematic shows CW rotation facing the drive end. For CCW rotation, transpose the blue and yellow leads.. The post is about the single-phase permanent split capacitor motor wiring diagram. In the diagram, I have shown the complete wiring connection with the power source (220 VAC), Motor internal winding connection, and motor running capacitor.
Guide to wiring, reversing and identifying materials required for a 4-wire AC gearmotor or motor. Includes both easy to read diagrams and in-depth instructions.. PART 1: Wiring without a direction switch Identify the capacitor value to be To connect the motor to run clockwise: Identify the wire colors and confirm that the used with the motor. The capacitor (see connection diagram 07410072) gearmotor or motor is a 3-wire reversible specifications are shown on the Connect the black wire from the motor and PSC model. Bodine stock motors have red.
